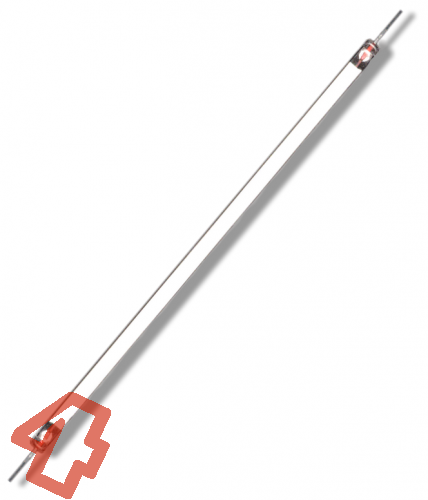

CCFL standard 245mm x 4.1mm (L x Ø) white

CCFL standard  245mm x 4.1mm (L x Ø) white
from 19,04 EUR
incl. 19 % Tax excl.
Product No.:CFL41-0245s-s62
Shipping time: 1 - 2 days



Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • general illumination purpose of all kinds
  • white design illumination with a bluish hue

Technical data

KKL Massbild


Mechanical
Tolerance
Diameter 4.1 mm +/- 0,1 mm
Length L 245 mm +/- 1 mm
Luminous length LL > 225 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 300 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 1500 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 6200°K +/- 200°K
Visible colour weiss
-
Luminance 16000 cd/m2 +/- 5%
Lifetime 20000 h
-



Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.






Sliding-scale prices:

1-3 pcs per 19,04 EUR
4-19 pcs per 13,09 EUR
> 20 pcs per 11,52 EUR

This Product was added to our catalogue on Saturday, 24. March 2007.
