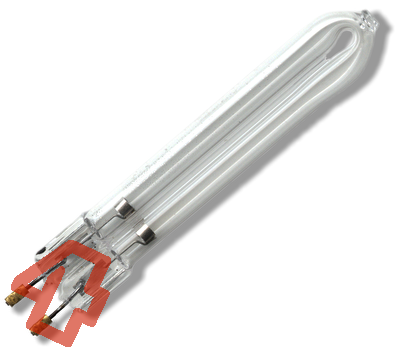

CCFL clear glass 35mm x 5mm (L x Ø) UVC

CCFL clear glass  35mm x 5mm (L x Ø) UVC
from 13,51 EUR
incl. 19 % Tax excl.
Product No.:CFL50-0035c-uUC
Shipping time: 1 - 2 days



Properties

  • electrodes prepared as: steel wire ends to crimp or screw, NOT solderable!
  • very low production of ozone by covered clear glass

Main applications

  • measuring instruments
  • detection of hidden symbols on materials
  • disinfection, fumigation, removing of algae
  • fluorescence analysis, e.g. of gemstones and minerals

Technical data

KKL Massbild


Mechanical
Tolerance
Diameter 5 mm +/- 0.1 mm
Length L 35 mm +/- 1 mm
Luminous length LL > 36 mm +/- 2 mm
Length of electrodes > 15 mm + 10 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage - VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption - mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 254nm -
Visible colour UV-C
-
Luminance 0.25 cd/m2 +/- 5%
Lifetime 10000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.






Sliding-scale prices:

1-3 pcs per 13,51 EUR
4-19 pcs per 9,28 EUR
> 20 pcs per 8,18 EUR

This Product was added to our catalogue on Friday, 01. June 2007.
