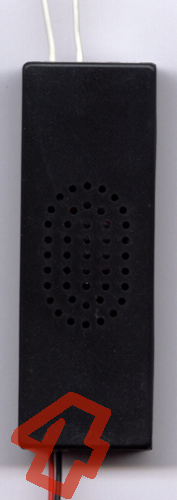

12 Volt Inverter for CCFL 500mm x 3mm (L x Ø), single

from 16,18 EUR

incl. 19 % tax excl.

Product No.:INV012F01sH-1000-B3BXHA
Dispatch time: 1 - 2 days

Quantity:

Properties

inverter incl. a black housing for 12 Volt DC power supply
not dimmable
DC supply jacket for B2B-XH-A connector
red-black cable with min. 200mm length incl. B2B-XH-A connector
1 high voltage/lamp output for B3B-XH-A connector
1 white silicone cables with min. 400mm length incl. B3B-XH-A connector

Main applications

supply of CCFLs with a working voltage of around 1000 Volt at about 5mA
inexpensive replacement for electronic inverters in all kinds of displays
driver circuit for high voltage cascades

Technical data

Overview technical details
Mechanichal		Tolerance
Length L	85 mm	+/- 0.5 mm
Width W	28 mm	+/- 0.5 mm
Heigth H	22 mm	+/- 1 mm
Weight without cables	62 g	+/- 2 g
Length supply cable	> 200 mm	-
Length output cable	> 400 mm	-
Working temperature	0 bis + 60°C	-
Storage temperature	- 20 bis + 80°C	-
Housing	yes, black	-
Electrical
Supply voltage	12 Volt DC	+/- 1 Volt DC
Supply current	750 mA	+/- 50 mA
Working voltage	1000 V_RMS	+/- 50 VRMS
Working current	5 mA_RMS	+/- 1 mA_RMS
Power output	5000 mVA	+/- 10 %
Sinuslike AC	26 KHz	+/- 5 KHz
Fuse in DC supply circuit	no	-
Fuse in AC output circuit	no	-

Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.

Sliding-scale prices:

1-4 pcs per 16,18 EUR
5-19 pcs per 12,39 EUR
> 20 pcs per 10,31 EUR

This Product was added to our catalogue on Tuesday, 21. August 2007.
