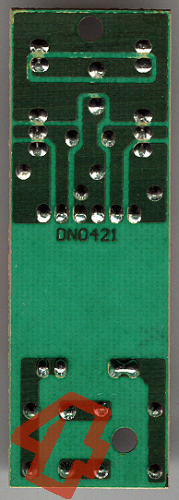

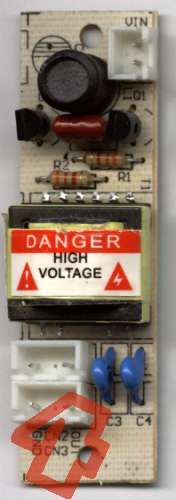

12 Volt Inverter for CCFL 250-300mm x 4.1mm (L x Ø), double

12 Volt Inverter for CCFL 250-300mm x 4.1mm (L x Ø), double
from 16,18 EUR
incl. 19 % tax excl.
Product No.:INV012F02sN-530-B3BXHA
Dispatch time: 1 - 2 days

Quantity:

Properties

  • inverter without housing for 12 Volt DC power supply
  • not dimmable
  • DC supply jacket for B2B-XH-A connector
  • red-black cable with min. 200mm length incl. B2B-XH-A connector
  • 2 high voltage/lamp outputs for B3B-XH-A connector
  • 2 white silicone cables with min. 200mm length incl. B3B-XH-A connector
  • 2 mounting holes


Main applications

  • supply of CCFLs with a working voltage of around 530 Volt at about 5mA
  • inexpensive replacement for electronic inverters in all kinds of displays
  • driver circuit for high voltage cascades


Technical data

Mechanichal
Tolerance
Length L 67 mm +/- 0.5 mm
Width W 20 mm +/- 0.5 mm
Heigth H 15 mm +/- 1 mm
Weight without cables
17 g +/- 2 g
Length supply cable > 200 mm -
Length output cable
> 200 mm
-
Working temperature 0 bis + 60°C -
Storage temperature - 20 bis + 80°C -
Housing no -
Electrical
Supply voltage
12 Volt DC
+/- 1 Volt DC
Supply current
680 mA +/- 30 mA
Working voltage
530 VRMS +/- 50 VRMS
Working current 5 mARMS +/- 1 mARMS
Power output 5300 mVA +/- 10 %
Sinuslike AC 30 KHz +/- 5 KHz
Fuse in DC supply circuit
no -
Fuse in AC output circuit
no -
Overview technical details



Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.



12 Volt Inverter for CCFL 250-300mm x 4.1mm (L x Ø), double 12 Volt Inverter for CCFL 250-300mm x 4.1mm (L x Ø), double


Sliding-scale prices:

1-4 pcs per 16,18 EUR
5-19 pcs per 12,39 EUR
> 20 pcs per 10,31 EUR

This Product was added to our catalogue on Wednesday, 22. August 2007.
