from 65,00 EUR

incl. 19 % tax excl.

Product No.:INV024F02pN-450-BHR03VS
Dispatch time: 1 - 2 days

Quantity:

Properties

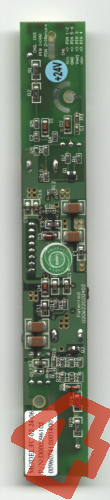

• high quality piezo inverter without housing for 24 Volt DC power supply
• 100% dimmable, no flickering
• brightness adjustment from 0 to full brightness by 0 - 5 Volt DC voltage level
• CCFL supply current adjustable by 2 jumpers to 6.5, 7 or 7.5mA
• 85% efficiency
• DC supply and control by Molex 53261-0690 input connector
• incl. supply cable with 290mm length

• output for JST BHR-03 connector
• electronic open lamp protection
• electronic short circuit protection
• built-in arc protection
• ultra low EM-noise(no coil and waves are extremely sinusoidal)
• no EMI
• 2 mounting holes

Main applications

• supply of CCFLs with a working voltage of around 450 Volt at about 6.5 mA to 7.5 mA, e.g. 170mm x 2mm
• high quality displays and light sources

• applications in military and medical environment(no EMI, low EM-noise, arc- and output protected)
• applications in high and static magnetic fields, e.g. 7 Tesla in magnetic resonance imaging
• CCFL based RGB-lightsource(100% dimmable)
• general inverter replacement

• driver circuit for high voltage cascades


Technical data

Sliding-scale prices:

1-4 pcs per 65,00 EUR
> 5 pcs per 53,55 EUR
