from 24,99 EUR

incl. 19 % Tax excl.

Product No.:EL-Pbl-gr-43x155-sl
Shipping time: 1 - 2 days



Properties

• high quality EL-panel with light off colour: grey and light on colour: blue-green

• laminated for proper protection

• 2 solderable contacts

• overall dimensions(LxWxH): 43mm x 155mm x 0.33mm
• luminous dimensions(LxW): 40mm x 147mm
• lifetime >3000 hrs = 50% of initial brightness, useful lifetime >10.000 hrs

• luminance ~ 10 cd/m² (depends on voltage and frequency of inverter)
• EL-panel can be cut by scissors if you need a smaller luminating area

Main applications

• backlight EL-lamp for LCD display Optrex DMF5005h
• backlight EL-lamp for LCD display of Sharp LM24014

• backlight EL-lamp for LCD display AND AND711A
• backlight EL-lamp for LCD display Toshiba TLX 711A

• backlight EL-lamp for display of Korg 01 W

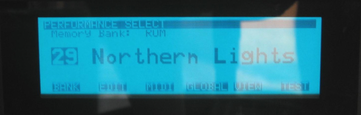

• backlight EL-lamp for display of Korg Wavestation A/D
• backlight EL-lamp for display of Korg Wavestation EX

• backlight EL-lamp for display of Yamaha DEQ 5

• backlight EL-lamp for display of Yamaha TG-77
• backlight EL-lamp for display of Yamaha SY-77
• backlight EL-lamp for display of Yamaha SY-99
• other replacement applications and machines
• ultra small and flat lighting applications

• blue-green night light
• design and art objects
• light spots
• emergency lights

  (Notes: Application listing is uncomplete and without warranty.)


Sliding-scale prices:

1-4 pcs per 24,99 EUR
> 5 pcs per 20,23 EUR
