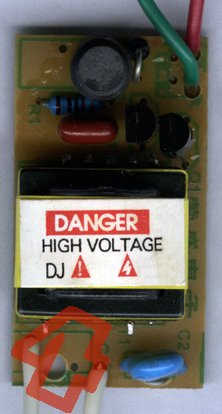

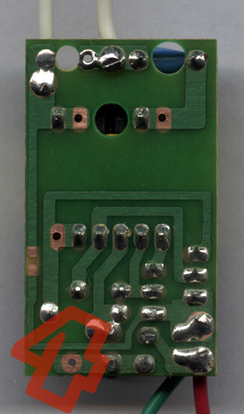

5 Volt Inverter for CCFL 50-100mm x 4.1mm (L x Ø), single outpu

from 14,99 EUR

incl. 19 % tax excl.

Product No.:INV005F01sN-120
Dispatch time: 1 - 2 days

Quantity:

Properties

inverter without housing for 5 Volt DC power supply
not dimmable
2 solderable cables of 90mm length for 5 Volt DC supply
2 solderable silicone cables 90mm length for CCFL output
small dimensions

Main applications

supply of tiny CCFLs with a working voltage of around 120 Volt at about 5mA, e.g. 100mm x 4.1mm
inexpensive replacement for electronic inverters of very small displays
small and compact light sources of bright light
driver of small UV CCFLs

Technical data

Overview technical details
Mechanichal		Tolerance
Length L	40 mm	+/- 0.5 mm
Width W	23 mm	+/- 0.5 mm
Heigth H	15 mm	+/- 1 mm
Weight without cables	15 g	+/- 1 g
Length supply cable	90 mm	-
Length output cable	90mm	-
Working temperature	0 bis + 60°C	-
Storage temperature	- 20 bis + 80°C	-
Housing	no	-
Electrical
Supply voltage	5 Volt DC	+/- 0.5 Volt DC
Supply current	430 mA	+/- 30 mA
Working voltage	120 V_RMS	+/- 30 VRMS
Working current	5 mA_RMS	+/- 1 mA_RMS
Power output	600 mVA	+/- 10 %
Sinuslike AC	53 KHz	+/- 5 KHz
Fuse in DC supply circuit	no	-
Fuse in AC output circuit	no	-

Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.
