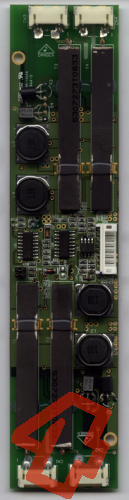

12 Volt Inverter for CCFL 300mm x 2mm (L x Ø), 4 outputs

12 Volt Inverter for CCFL 300mm x 2mm (L x Ø), 4 outputs
from 89,25 EUR
incl. 19 % tax excl.
Product No.:INV012F04pN-750-BHR03VS
Dispatch time: ca. 4 - 6 weeks

Quantity:

Properties

  • high quality piezo inverter without housing for 12 Volt DC power supply
  • 8 to 18 Volt DC supply range
  • 100% dimmable, no flickering
  • brightness adjustment from 0 to full brightness by 0 - 5 Volt DC voltage level
  • CCFL supply current adjustable by 2 jumpers to 5, 6 or 7mA
  • 85% efficiency
  • DC supply and control by JST S8B-PH-KL input connector
  • incl. supply cable 290mm length
  • for output connector: JST BHR03VS
  • electronic open lamp protection
  • electronic short circuit protection
  • built-in arc protection
  • ultra low EM-noise(no coil and waves are extremely sinusoidal)
  • no EMI
  • 2 mounting holes


Main applications

  • supply of 4 CCFLs with a working voltage of around 750 Volt at about 5 mA to 7 mA, e.g. 300mm x 2mm
  • high quality displays and light sources
  • applications in military and medical environment(no EMI, low EM-noise, arc- and output protected)
  • applications in high and static magnetic fields, e.g. 7 Tesla in magnetic resonance imaging
  • CCFL based RGB-lightsource(100% dimmable)
  • inverter replacement


Technical data

Mechanichal
Tolerance
Length L 175 mm +/- 0.5 mm
Width W 40 mm +/- 0.5 mm
Heigth H 9.5 mm +/- 0.5 mm
Weight without cables
 80 g +/- 1 g
Length supply cable 290 mm
 -
Length output cable
 no cable
 -
Working temperature - 40 bis + 85°C -
Storage temperature - 40 bis + 85°C -
Housing no -
Electrical
Supply voltage
 		12 Volt DC
 - 4 / + 6 Volt DC
Supply current
 1.75
 +/- 50 mA
Working voltage
 750 VRMS +/- 50 VRMS
Working current 5 mARMS +/- 1 mARMS
Power output 15.000 mVA +/- 10 %
Sinuslike AC 53 KHz
 +/- 5 KHz
Short circuit protection
yes -
Open lamp and arc protection
 yes -
Overview technical details



Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our piezo inverters are offered excluding cables(watch description of the article). If needed, please ask for input cables. Silicone output cables, caps and other hard to find parts are located in the area: CCFL -> Accessories.



12 Volt Inverter for CCFL 300mm x 2mm (L x Ø), 4 outputs


Sliding-scale prices:

1-4 pcs per 89,25 EUR
> 5 pcs per 77,35 EUR
