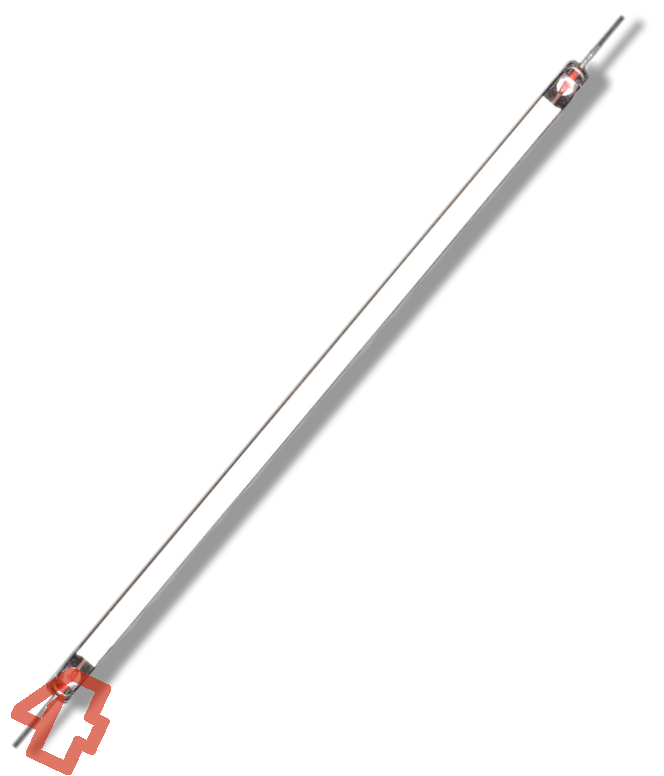

CCFL longlife  430mm x 2.6mm (L x ) white

CCFL longlife 430mm x 2.6mm (L x ) white

Not rated yet


from 17,29 EUR
unit price 29,51 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 29,51 EUR
4 - 19 pcs. per 21,24 EUR
from 20 pcs. per 17,29 EUR
Product no.: CFL26-0430l-s90
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • backlight lamp for 20.1" TFT panels
  • white design illumination with a bluish hue

Technical data

Massbild einer Kaltkathodenlampe



Mechanical
Tolerance
Diameter 2.6 mm +/- 0.1 mm
Length L 430 mm +/- 1 mm
Luminous length LL > 410 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 886 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 4430 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 9000°K +/- 200°K
Visible colour white
-
Luminance 32000 cd/m2 +/- 5%
Lifetime 40000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.

As a replacement for

Notebook/Flatscreen (TFT-Panel): n.a.

TFT-Panel: n.a.

(Notes:
The codevariable -x- subsumes similiar panels with the same CCFL. Listing is uncomplete and without warranty.)
