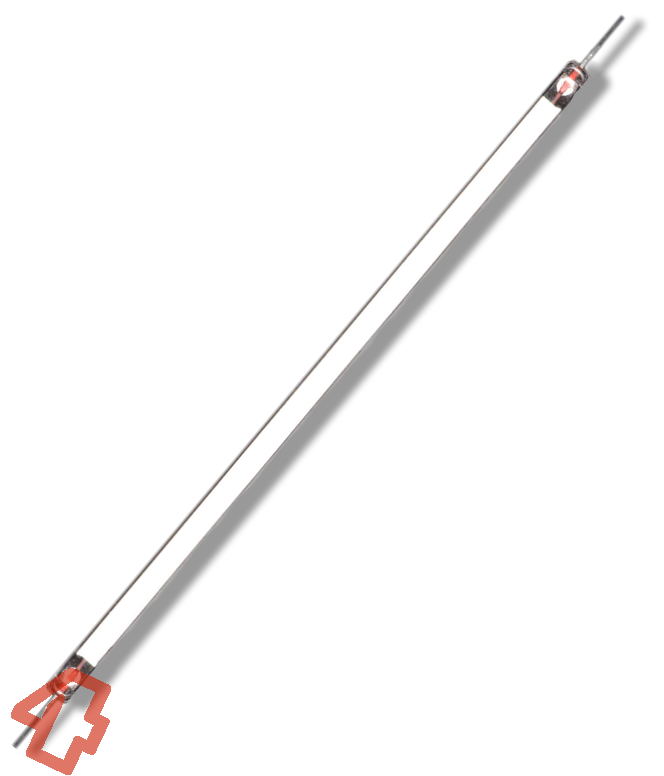

CCFL longlife   99mm x 3mm (L x ) white

CCFL longlife 99mm x 3mm (L x ) white

Not rated yet


from 13,53 EUR
unit price 22,61 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 22,61 EUR
4 - 19 pcs. per 18,17 EUR
from 20 pcs. per 13,53 EUR
Product no.: CFL30-0099l-s78
Shipping time: EU 3-14d, non-EU 10-45 days

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • backlight lamp for very small LCD/TFT-panels
  • digital cameras, PDAs, photocopier, measuring instruments
  • ultra small and flat lighting applications
  • daylight white design illumination

Technical data

Massbild einer Kaltkathodenlampe



Mechanical
Tolerance
Diameter 3 mm +/- 0.1 mm
Length L 99 mm +/- 1 mm
Luminous length LL > 79 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 269 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 1345 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 7800°K +/- 200°K
Visible colour weiss
-
Luminance 28000 cd/m2 +/- 5%
Lifetime 40000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.

As a replacement for
















Musicinstrument: AKAI MPC2000

LCD/TFT-Display: n.a.

(Notes: Listing is uncomplete and without warranty.)
