CCFL standard   72mm x 2.3mm (L x ) white

CCFL standard 72mm x 2.3mm (L x ) white

Not rated yet


from 10,15 EUR
unit price 15,49 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 15,49 EUR
4 - 19 pcs. per 11,96 EUR
from 20 pcs. per 10,15 EUR
Product no.: CFL23-0072s-s78
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • backlight lamp for very small TFT screens in digital equipment
  • digital cameras, PDAs, measuring instruments
  • ultra small and flat lighting applications
  • white design illumination with a bluish hue

Technical data

Massbild einer Kaltkathodenlampe


Mechanical
Tolerance
Diameter 2.3 mm +/- 0.1 mm
Length L 72 mm +/- 1 mm
Luminous length LL > 52 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 260 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 1300 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 7800°K +/- 200°K
Visible colour weiss
-
Luminance 35000 cd/m2 +/- 5%
Lifetime 15000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.

As a replacement for

PDA (TFT-panel): n.a.

(Notes: Listing is uncomplete and without warranty.)

Customer reviews for "CCFL standard 72mm x 2.3mm (L x ) white"

No reviews yet. Be the first to write a review...

Customers also purchased...

CCFL standard  140mm x 2.3mm (L x ) white

CCFL standard 140mm x 2.3mm (L x ) white

from 11,90 EUR
unit price 19,04 EUR

19 % VAT incl. excl. Shipping costs

Silicone cap 2mm rectangular white

Silicone cap 2mm rectangular white

from 0,26 EUR
unit price 0,52 EUR

19 % VAT incl. excl. Shipping costs

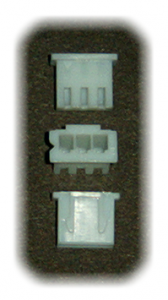

Cable Set B3B-XH-A male 500mm/500mm
