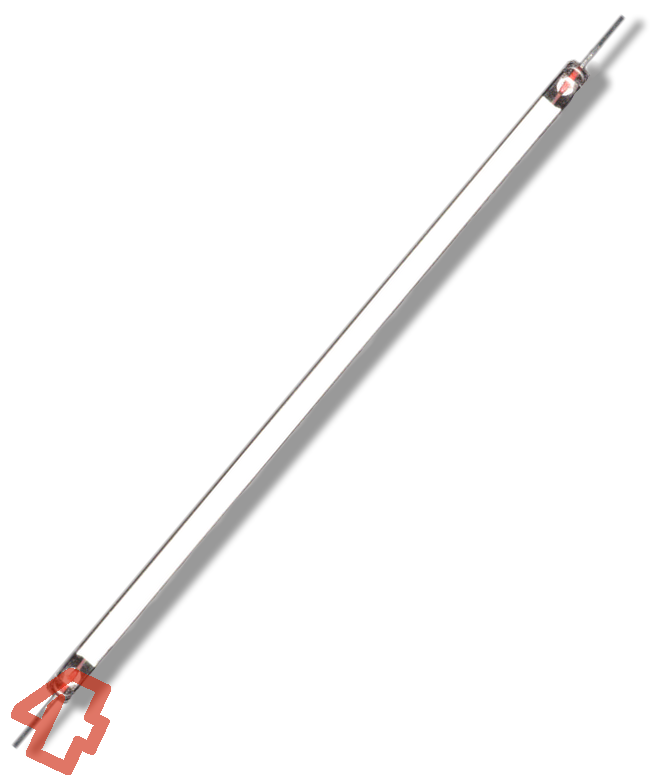

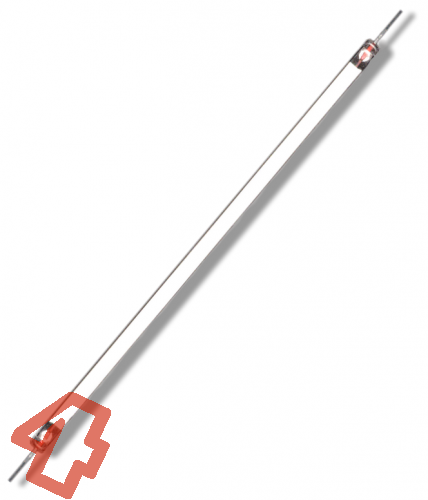

CCFL standard  300mm x 4.1mm (L x ) white

CCFL standard 300mm x 4.1mm (L x ) white

Not rated yet


from 11,90 EUR
unit price 19,04 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 19,04 EUR
4 - 19 pcs. per 15,05 EUR
from 20 pcs. per 11,90 EUR
Product no.: CFL41-0300s-s78
Shipping time: EU 3-14d, non-EU 10-45 days

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • general illumination purpose of all kinds
  • white design illumination with a bluish hue

Technical data

Massbild einer Kaltkathodenlampe


Mechanical
Tolerance
Diameter 4.1 mm +/- 0,1 mm
Length L 300 mm +/- 1 mm
Luminous length LL > 280 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis +50°C -
Storing temperature -50 bis +110°C -
Electrical
Working voltage 369 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 1845 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 7800°K +/- 200°K
Visible colour weiss
-
Luminance 16000 cd/m2 +/- 5%
Lifetime 20000 h
-



Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.
