5 Volt Inverter for EL-Panels up to 105cm2 area

5 Volt Inverter for EL-Panels up to 105cm2 area

Not rated yet


from 8,33 EUR
unit price 10,35 EUR

19 % VAT incl. excl. Shipping costs

1 - 4 pcs. per 10,35 EUR
5 - 19 pcs. per 9,52 EUR
from 20 pcs. per 8,33 EUR
Product no.: EL-INV05FsH3P-105
Shipping time: EU 3-14d, non-EU 10-45 days

Properties

  • inverter for electroluminiscent panels for 5 Volt DC power supply
  • black housing filled with resin
  • not dimmable

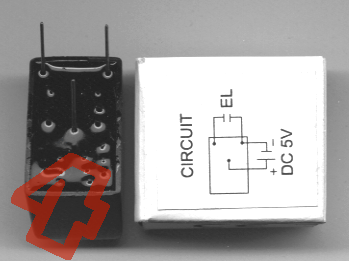

  • 3 solderable pins for 5 Volt DC supply and EL-panel output, watch picture
  • dimensions(without pins, LxWxH): 27.5mm x 17mm x 19.3mm
  • weight: 11g

Main applications

  • supply of EL-panels between 70cm2 and 105cm2
  • inexpensive replacement for all kind of EL-inverters


Technical data

Mechanichal
Tolerance
Length L 27.5 mm +/- 0.5 mm
Width W 17 mm +/- 0.5 mm
Heigth H 19.3 mm +/- 0.5 mm
Total weight
11 g +/- 1 g
Length solder pins 10 mm
-
Working temperature 0 bis + 60°C -
Storage temperature - 20 bis + 80°C -
Housing yes -
Electrical
Supply voltage
5 Volt DC
+/- 1 Volt DC
Supply current
50 mA +/- 10 mA
Working voltage
60 VRMS + 30 VRMS
Sinuslike AC 600 Hz +/- 50 Hz
Fuse in DC supply circuit
no -
Fuse in AC output circuit
no -
Overview technical details



Additional notes

none
