Products description
Properties
- inverter for electroluminiscent panels for 3 Volt up to 6 Volt DC power supply
- no housing
- not dimmable

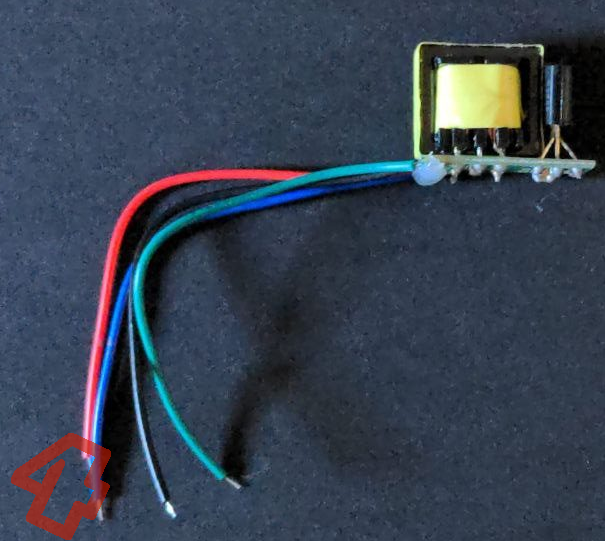

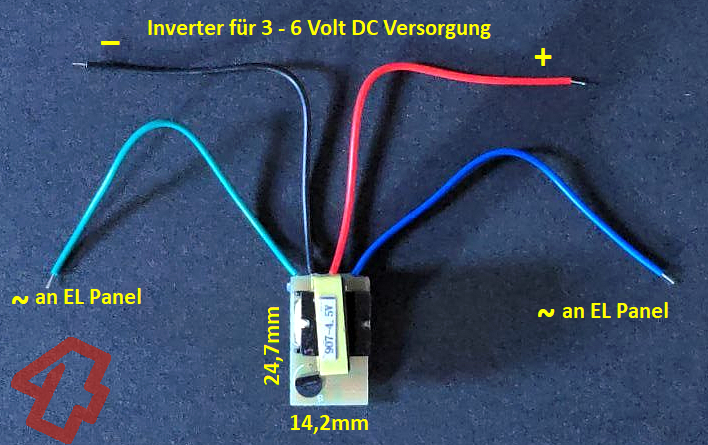

- 4 solderable cables for DC supply (+ red, - black) and EL-panel output (green and blue), watch picture
- cable length: ~75mm, useful for external placement and no physical contact to the pcb (accustic noice)
- dimensions (LxBxH): max. 24.7mm x 14.2mm x 18.6mm
- weight: 9.8g
Main applications
- supply of EL-panels between 30cm2 and 90cm2
- inexpensive replacement for all kind of EL-inverters
Technical data
| Mechanichal | Tolerance | |
| Length L | 24.7 mm | +/- 0.5 mm |
| Width W | 14.2 mm | +/- 0.5 mm |
| Heigth H | 18.6 mm | +/- 0.5 mm |
| Total weight | 9.8 g | +/- 0.5 g |
| Cable Length | 75 mm | +/- 5 mm |
| Working temperature | 0 bis + 60°C | - |
| Storage temperature | - 20 bis + 80°C | - |
| Housing | no | - |
| Electrical | ||
| Supply voltage | 4.5 Volt DC | +/- 1.5 Volt DC |
| Supply current | 205 mA at 5 Volt DC | +/- 15 mA |
| Working voltage | 71 VRMS at 5 Volt DC | +/- 2 VRMS |
| Sinuslike AC | 1,5 KHz at 60 cm2 area | +/- 100 Hz |
| Fuse in DC supply circuit | no | - |
| Fuse in AC output circuit | no | - |
Additional notes
Replacement for: n.a.
