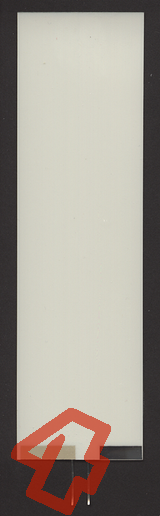

EL-Panel, blue-green, 43mm x 155mm, laminated

EL-Panel, blue-green, 43mm x 155mm, laminated

Not rated yet


from 20,23 EUR
unit price 23,99 EUR

19 % VAT incl. excl. Shipping costs

1 - 4 pcs. per 23,99 EUR
from 5 pcs. per 20,23 EUR
Product no.: EL-Pbl-gr-43x155-sl
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • high quality EL-panel with light off colour: grey and light on colour: blue-green
  • all around lamination by factory for proper protection
  • 2 solderable contacts
  • overall dimensions(LxWxH): 43mm x 155mm x 0.33mm
  • luminous dimensions (LxW): 40mm x 147mm
  • lifetime >3000 hrs = 50% of initial brightness, useful lifetime >10.000 hrs
  • luminance ~10 cd/m2 (depends on voltage and frequency of inverter)
  • EL-panel can be cut by scissors if you need a smaller luminating area
  • watch the attached backlight exchange manual from below how to replace the EL-panel yourself
  • shipping in a stiff and stable box to prevent a buckling of the EL-panel for a safe transport worldwide

Main applications

  • backlight EL-lamp for LCD display Optrex DMF5005
  • backlight EL-lamp for LCD display AND AND711A
  • backlight EL-lamp for LCD display Toshiba TLX 711A
  • backlight EL-lamp for display of Korg 01 R/W
  • backlight EL-lamp for display of Korg 01 WFD
  • backlight EL-lamp for display of Korg i3

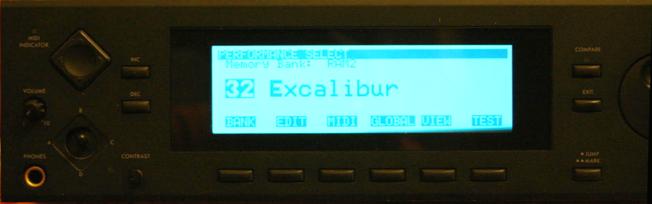

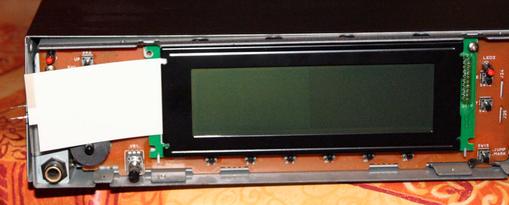

  • backlight EL-lamp for display of Korg Wavestation A/D
  • backlight EL-lamp for display of Korg Wavestation EX
  • backlight EL-lamp for display of Korg Wavestation WS1
  • backlight EL-lamp for display of Korg Wavestation WSA/D
  • backlight EL-lamp for display of Roland A-50
  • backlight EL-lamp for display of Roland A-80
  • backlight EL-lamp for display of Roland D-70
  • backlight EL-lamp for display of Roland GC-8
  • backlight EL-lamp for display of Yamaha DEQ 5
  • backlight EL-lamp for display of Yamaha QS300
  • backlight EL-lamp for display of Yamaha SY-77
  • backlight EL-lamp for display of Yamaha SY-99
  • backlight EL-lamp for display of Yamaha W5
  • backlight EL-lamp for display of Yamaha W7
  • other replacement applications and machines
  • ultra small and flat lighting applications
  • blue-green night light
  • design and art objects
  • light spots
  • emergency lights

(Notes: Application listing is uncomplete and without warranty.)
