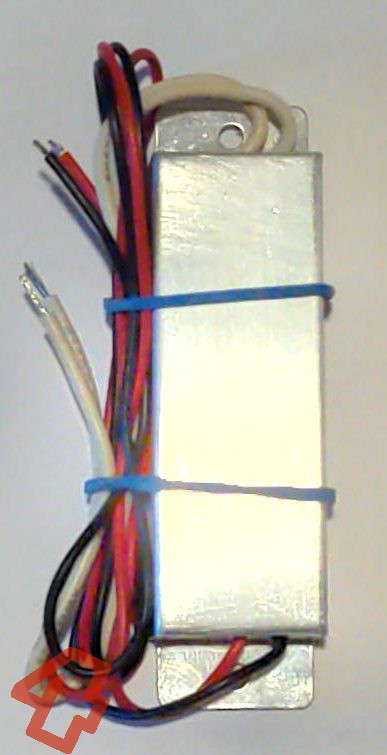

12 Volt Inverter for CCFL 200-240mm x 2mm (L x Ø), single

12 Volt Inverter for CCFL 200-240mm x 2mm (L x Ø), single
For a larger view click on the thumbnail
17,35 EUR
19 % VAT incl. excl. Shipping costs
Scaled prices
from 1 pcs.per 17,35 EUR
from 5 pcs.per 14,99 EUR
from 20 pcs.per 11,79 EUR
Add to cart

Shipping time: EU 3-14d, non-EU 10-45d
Product no.: INV012F01sE-590


Products description

Properties

  • encapsuled inverter with shielded housing for 12 Volt DC power supply
  • not dimmable
  • red-black cable with min. 450mm length
  • white silicone output cable with min. 170mm length
  • 2 mounting holes


Main applications

  • supply of CCFLs with a working voltage of around 590 Volt at about 5mA
  • need for shielded and encapsulated inverters
  • outdoor application
  • inexpensive replacement for electronic inverters in all kinds of displays
  • driver circuit for high voltage cascades


Technical data



Mechanichal Tolerance
Length L 85 mm+/- 2 mm
Width W24 mm+/- 1 mm
Heigth H18 mm+/- 1 mm
Weight incl. cables59 g+/- 2 g
Length supply cable> 4500 mm-
Length output cable> 170 mm-
Working temperature0 bis + 60°C-
Storage temperature- 20 bis + 80°C-
HousingAluminium, filled with resin-
Electrical
Supply voltage12 Volt DC+/- 1 Volt DC
Supply current420 mA+/- 30 mA
Working voltage590 VRMS+/- 50 VRMS
Working current5 mARMS+/- 1 mARMS
Power output2950 mVA+/- 10 %
Sinuslike AC42 KHz+/- 5 KHz
Fuse in DC supply circuitno-
Fuse in AC output circuitno-
Overview technical details




Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.
