Properties

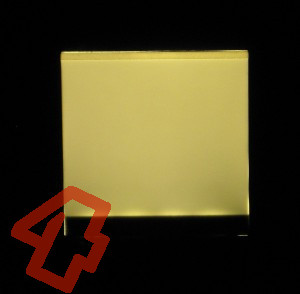

• White shining LED backlight, powered by 4 LEDs

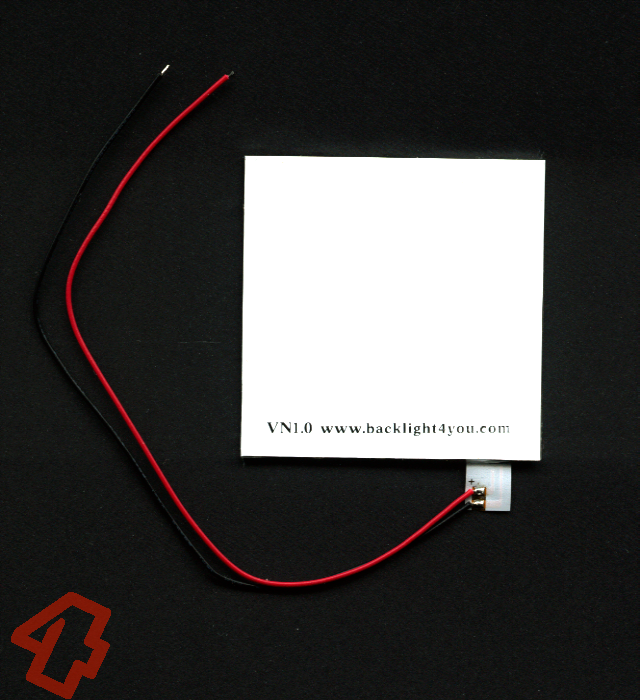

• Dimensions (L x W x H): 53 x 53 x 1.7mm, cables about 150mm long with tinned wire ends
• Raw weight: ~5.5g
• Nominal working voltage: 5 Volt DC
• Current consumption at 5 Volt DC: 26mA
• Luminance at 5 Volt DC without protection layer or polarizing film: not measured yet

• Colour Temperature at 5 Volt DC: 3.000°K

Main applications

• Smooth warm-white backlight for the Game Boy Classic (DMG) and Game Boy Pocket
• Backlighting of other consoles and displays
• Other backlight or signal-light applications

Notes

• A very good BUT german tutorial for the whole installion incl. many pictures can be found here: Bivert-Mod für Game Boy DMG und Game Boy Pocket
• A profound installation service for the Game Boy and other consoles offers Andreas König alias Don King, Germany: DonKing Konsolenservice
