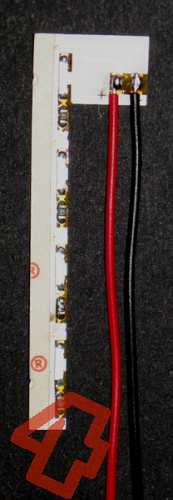

LED-FPC, warm-white

Properties

• LED-FPC (Flexible Printed Circuit) with light-color warm-white for exchange at our org. LED-backlight
• Light injection from the side
• Dimensions (L x W x H): 46 x 13 x 1mm (without cables)
• Raw weight: ~1g
• Cable length: 150mm long with tinned wire ends
• Nominal working voltage: 5 Volt DC
• Current consumption at 5 Volt DC: 25mA
• Luminance: (will be checked and published later)
• Color temperature: ~ 3000°K



Main applications

• Colored backlight for the Game Boy Classic (DMG) and Game Boy Pocket
• Colored light injection from the side for other displays or light bodies

Notes

• The LED-FPC comes without our LED-backlight. For implementation you need one of our LED-backlights, too.
• The LED-FPC can be used with our LED-backlights, only. It will probably not fit into backlights from other manufacturers.
• Important: If you want to install the warm-white LED-FPC into a Game Boy Pockets backlight a series resistor is mandatory! Those can be found as Set Trimpot 01 or 02 in the accessories folder.
• A very good BUT german tutorial for installation incl. many selfexplaining photos can be found here: Mounting colored LED-boards into our backlight
