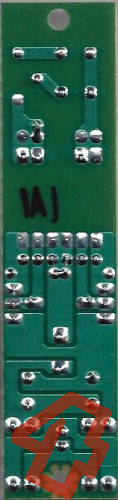

24 Volt Inverter for CCFL 290mm x 2mm (L x Ø), single
Product no.: INV024F01sN-710-B3BXHA
Properties
-
inverter without housing for 24 Volt AC(!) power supply
- not dimmable
- AC supply jacket for B2B-XH-A connector
- red-black cable with min. 200mm length incl. B2B-XH-A connector

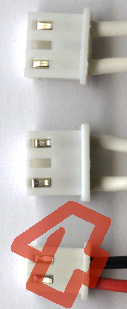

- 1 high voltage/lamp outputs for B3B-XH-A connector
- 1 white silicone cables with min. 200mm length incl. B3B-XH-A connector
- 2 mounting holes
Main applications
-
supply of CCFLs with a working voltage of around 710 Volt at about 5mA
- inexpensive replacement for electronic inverters in all kinds of displays
-
driver circuit for high voltage cascades
Technical data
| Mechanichal | Tolerance | |
| Length L | 85 mm | +/- 0.5 mm |
| Width W | 20 mm | +/- 0.5 mm |
| Heigth H | 16 mm | +/- 1 mm |
| Weight without cables |
20 g | +/- 2 g |
| Length supply cable | > 200 mm | - |
| Length output cable |
> 200 mm |
- |
| Working temperature | 0 bis + 60°C | - |
| Storage temperature | - 20 bis + 80°C | - |
| Housing | no | - |
| Electrical | ||
| Supply voltage |
24 Volt AC |
+/- 2 Volt AC |
| Supply current |
510 mA | +/- 30 mA |
| Working voltage |
710 VRMS | +/- 50 VRMS |
| Working current | 5 mARMS | +/- 1 mARMS |
| Power output | 3550 mVA | +/- 10 % |
| Sinuslike AC | 40 KHz | +/- 5 KHz |
| Fuse in DC supply circuit |
no | - |
| Fuse in AC output circuit |
no | - |
Additional notes
The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.
Price:
16,18 EUR
19 % VAT incl. excl. Shipping costs
Scaled prices
from 1 pcs.
per 16,18 EUR
from 5 pcs.
per 12,39 EUR
from 20 pcs.
per 10,31 EUR
