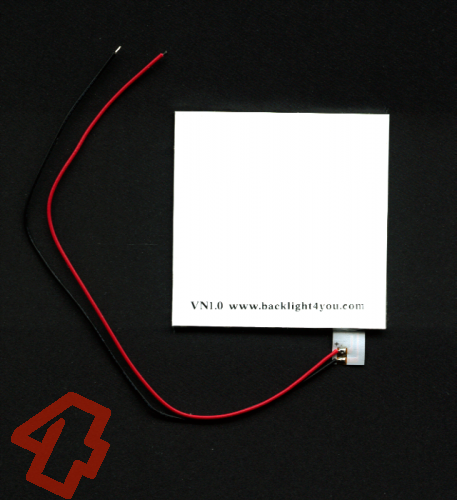

LED-backlight, 53mm x 53mm x 1.7mm, warm-white
LED-GB-02-ww
Properties
- White shining LED backlight, powered by 4 LEDs
- Dimensions (L x W x H): 53 x 53 x 1.7mm, cables about 150mm long with tinned wire ends
- Raw weight: ~5.5g
- Nominal working voltage: 5 Volt DC
- Current consumption at 5 Volt DC: 26mA
- Luminance at 5 Volt DC without protection layer or polarizing film: not measured yet
- Colour Temperature at 5 Volt DC: 3.000°K
Main applications
- Smooth warm-white backlight for the Game Boy Classic (DMG) and Game Boy Pocket
- Backlighting of other consoles and displays
- Other backlight or signal-light applications
Notes
- A very good BUT german tutorial for the whole installion incl. many pictures can be found here:
- A profound installation service for the Game Boy and other consoles offers Andreas König alias Don King, Germany: DonKing Konsolenservice
Price:
from 14,16 EUR
unit price 15,49 EUR, 19 % VAT incl. excl. Shipping costs
| 1 - 4 pcs. | per 15,49 EUR |
| 5 - 19 pcs. | per 14,66 EUR |
| from 20 pcs. | per 14,16 EUR |
