3 Volt Inverter for EL-Panels up to 40cm2 area
Product no.: EL-INV03FsH-40
Properties
-
inverter for electroluminiscent panels for 3 Volt DC power supply

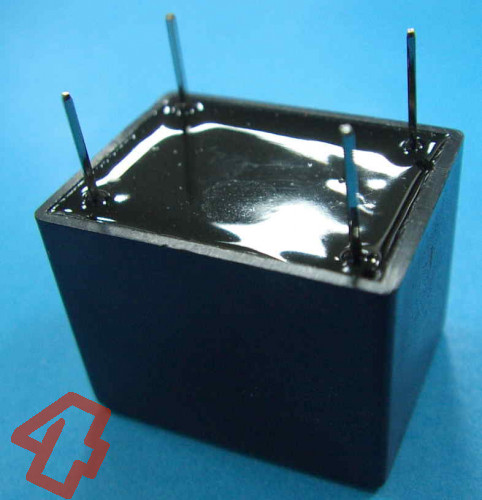

- black housing filled with resin
- not dimmable
- 4 solderable pins for 3 Volt DC supply and EL-panel output, watch picture
- pin pitch 20mm x 14mm
- weight: 19g
- RoHS conformity
Main applications
-
supply of EL-panels between 10cm2 and 40cm2
- inexpensive replacement for all kind of EL-inverters
Technical data
| Mechanichal | Tolerance | |
| Length L | 27 mm | +/- 0.5 mm |
| Width W | 21 mm | +/- 0.5 mm |
| Heigth H | 20 mm | +/- 0.5 mm |
| Total weight | 19 g | +/- 1 g |
| Pin pitch | 20 x 14 mm | - |
| Working temperature | 0 bis + 60°C | - |
| Storage temperature | - 20 bis + 80°C | - |
| Housing | yes | - |
| Electrical | ||
| Supply voltage | 3 Volt DC | +/- 0.5 Volt DC |
| Supply current | 40 mA | +/- 10 mA |
| Working voltage | 80 VRMS | +/- 14 VRMS |
| Sinuslike AC | 850 Hz | +/- 127 Hz |
| Fuse in DC supply circuit | no | - |
| Fuse in AC output circuit | no | - |
Additional notes
Replacement for: n.a.
Price:
10,35 EUR
19 % VAT incl. excl. Shipping costs
Scaled prices
from 1 pcs.
per 10,35 EUR
from 5 pcs.
per 9,52 EUR
from 20 pcs.
per 8,33 EUR
