HCFL special set 255mm x 12mm (L x Ø) white
Product no.: HFL12-0255s
Properties
-

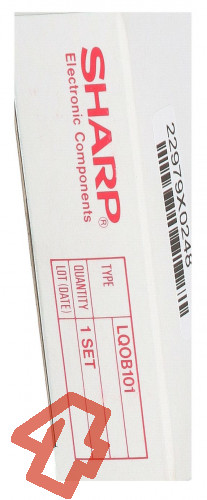

Set connection pre-assembled with caps, cables and connectors in orig. Cardboard box, description: Sharp LQOB101, lamp set FL6EX265-A and FL6EX265-B
Main applications
-

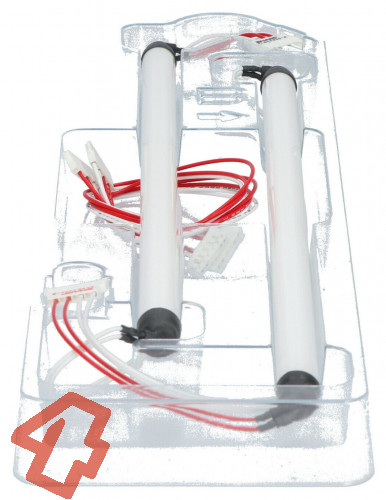

Original set consisting of 2 miniature fluorescent tubes and suitable cables for SHARP display LQ10DH11
Technical data
| Mechanical | Tolerance | ||
| Diameter | 12 mm | + 0.2 mm | |
| Length L | 255 mm | + 4 mm | |
| Luminous length LL | > 240 mm | + 5 mm | |
| Length of left cable | 350 mm | + 10 mm | |
| Length of right cable | 50 mm | + 10 mm | |
| Warm-up time | 3 min | - | |
| Working temperature | 0 bis + 50°C | - | |
| Storing temperature | - 50 bis + 110°C | - | |
| Electrical | |||
| Working voltage | n.a. |
- |
|
| Working current | n.a. |
- | |
| Power consumption | n.a. |
- |
|
| Sinusoidal AC | n.a. |
- | |
| Optical | |||
| Colour temperature | n.a. | - |
|
| Visible colour | weiss |
- | |
| Luminance | n.a. |
- |
|
| Lifetime | 20.000 h |
- | |
Additional notes
CCFLs are made of glass, which is easily broken. The exchange of HCFL, CCFL and EEFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information.
As a replacement for
LCD-Display: Sharp LQ10DH11, 10,4" Sipcom Light
Manufacturer/Device: Siemens operator panel OP30
(Notes: Listing is uncomplete and without warranty.)
Manufacturer/Device: Siemens operator panel OP30
(Notes: Listing is uncomplete and without warranty.)
Price:
113,05 EUR
19 % VAT incl. excl. Shipping costs
Scaled prices
from 1 pcs.
per 113,05 EUR
from 5 pcs.
per 101,15 EUR
from 20 pcs.
per 95,20 EUR
