EL-Panel, pink-white, 19.5mm x 222mm, laminated

Product no.: EL-Ppi-wh-19.5x222-sl

Properties

• high quality EL-panel with light off colour: pink and light on colour: white
• all around lamination by factory for proper protection
• 2 solderable contacts
• overall dimensions(LxWxH): 19.5mm x 222mm x 0.33mm
• luminous dimensions (LxW): 18mm x 220mm
• lifetime >3000 hrs (= 50% of initial brightness, useful lifetime >10.000 hrs)
• luminance ~ 10 cd/m² (depends on voltage and frequency of inverter)
• EL-panel can be cut by scissors if you need a smaller luminating area
• shipping in a stiff and stable box to prevent a buckling of the EL-panel for a safe transport worldwide

Main applications

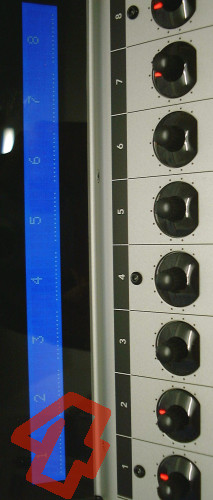

• replacement backlight EL-lamp for display of Emagic Logic Control
• replacement backlight EL-lamp for display of Mackie Control
• replacement backlight EL-lamp for display of Mackie MCU Pro
• replacement backlight EL-lamp for LCD of Displaytronic ACM5502A
• other replacement applications and devices
• ultra small and flat lighting applications
• white night light
• design and art objects
• light spots
• emergency lights

Notes

• Here you can find a nice and perfect installation video of Matt Ottewill. It deals with the backlight installation from minute 1:33 to 5:55. Subtitles can be switched on and they are in english.

(Notes: Application listing is uncomplete and without warranty.)

Price:

27,37 EUR

19 % VAT incl. excl. Shipping costs
