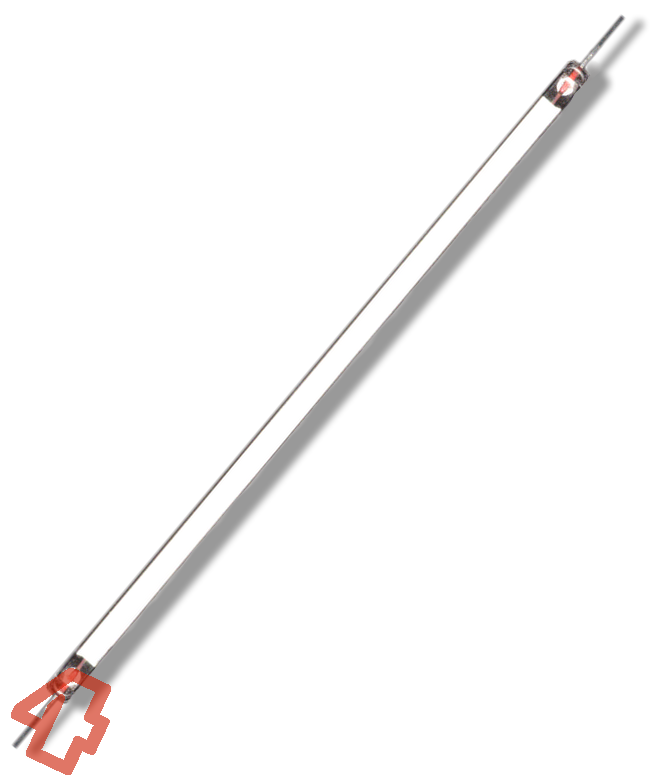

CCFL longlife   75mm x 2mm (L x ) white

CCFL longlife 75mm x 2mm (L x ) white

Not rated yet

from 13,53 EUR
unit price 22,61 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 22,61 EUR
4 - 19 pcs. per 18,17 EUR
from 20 pcs. per 13,53 EUR
Product no.: CFL20-0075l-s78
Shipping time: EU 3-14d, non-EU 10-45d


  • electrodes prepared as: tinned wire ends

Main applications

  • backlight lamp for very small TFT screens in digital equipment
  • digital cameras, PDAs, measuring instruments, slide scanner
  • ultra small and flat lighting applications
  • white design illumination with a bluish hue

Technical data

Massbild einer Kaltkathodenlampe


Diameter 2 mm +/- 0,1 mm
Length L 75 mm +/- 1 mm
Luminous length LL > 55 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis +50°C -
Storing temperature -50 bis +110°C -
Working voltage 264 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 1320 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Colour temperature 7800°K +/- 200°K
Visible colour weiss
Luminance 38000 cd/m2 +/- 5%
Lifetime 20000 h

Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.

As a replacement for










Slide Scanner: MEDIAX Silverscan 1800

(Notes: Listing is uncomplete and without warranty.)
