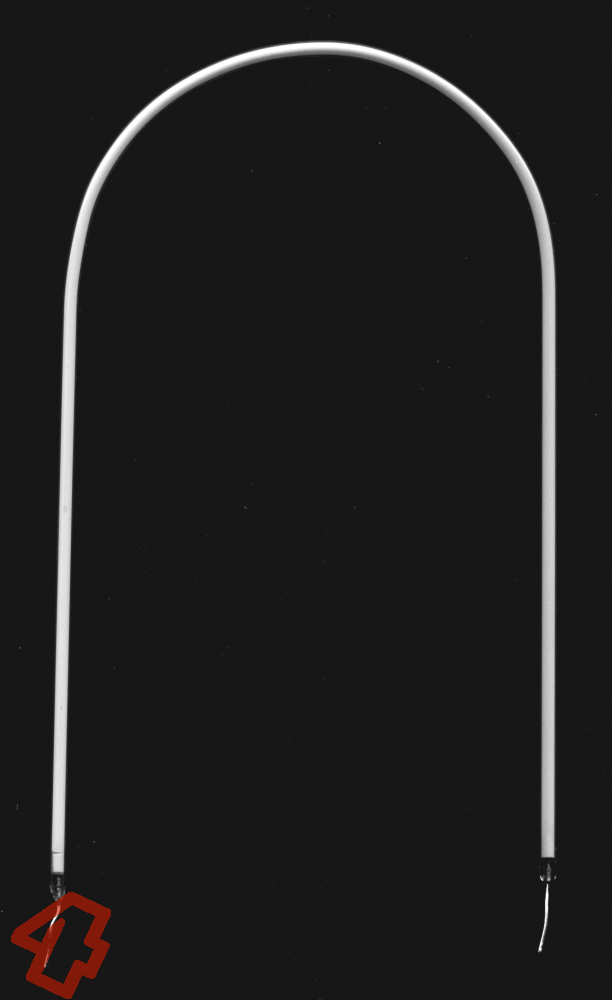

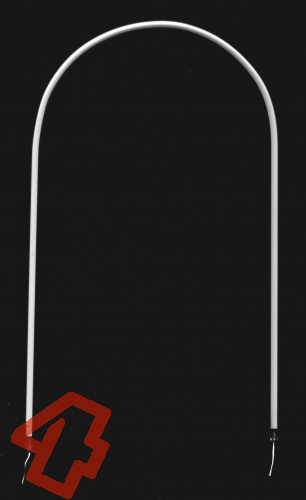

CCFL special   318mm x 2.6mm (U x ) white

CCFL special 318mm x 2.6mm (U x ) white

Not rated yet


from 27,97 EUR
unit price 32,84 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 32,84 EUR
from 4 pcs. per 27,97 EUR
Product no.: CFL26-0318s-u78
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • bright illumination source
  • white design illumination with a bluish hue

Technical data


Mechanical
Tolerance
Diameter 2.6 mm +/- 0.1 mm
Length to top of bow
133 mm +/- 1 mm
Width side to side
82 mm +/- 1 mm
Overall length L 318 mm +/- 1 mm
Luminous length LL > 298 mm + 5 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 680 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 3400 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 7800°K +/- 200°K
Visible colour weiss
-
Luminance 32000 cd/m2 +/- 5%
Lifetime 20000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.
