|Mechanical || ||Tolerance |
|Diameter ||2.6 mm ||+/- 0.1 mm |
|Length L ||450 mm ||+/- 1 mm |
|Luminous length LL ||> 430 mm ||+/- 1 mm |
|Length of electrodes ||> 10 mm ||+ 15 mm |
|Warm-up time ||3 min ||- |
|Working temperature ||0 bis + 50°C ||- |
|Storing temperature ||- 50 bis + 110°C ||- |
|Working voltage ||923 VRMS ||+/- 50 VRMS |
|Working current ||5 mARMS ||+ 1 mARMS |
|Power consumption ||4615 mVA ||+/- 10 % |
|Sinusoidal AC ||20 - 100 KHz ||- |
|Colour temperature ||7800°K ||+/- 200°K |
|Visible colour ||white ||- |
|Luminance ||32000 cd/m2 ||+/- 5% |
|Lifetime ||20000 h ||- |
CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.
As a replacement for
Notebook/Flatscreen (TFT-Panel): Apple A 1038 (IDTech IAWS64C), Eizo CG210-K (Hitachi TX54D11VC0CAC), Eizo L997 (Hitachi TX54D11VC0CAC), Samsung SyncMaster 213T (Hitachi TX54D11VC0CAC)
TFT-Panel: IDTech IAWS64C, Hitachi TX54D11VC0CAC
(Notes: The codevariable -x- subsumes similiar panels with the same CCFL. Listing is uncomplete and without warranty.)

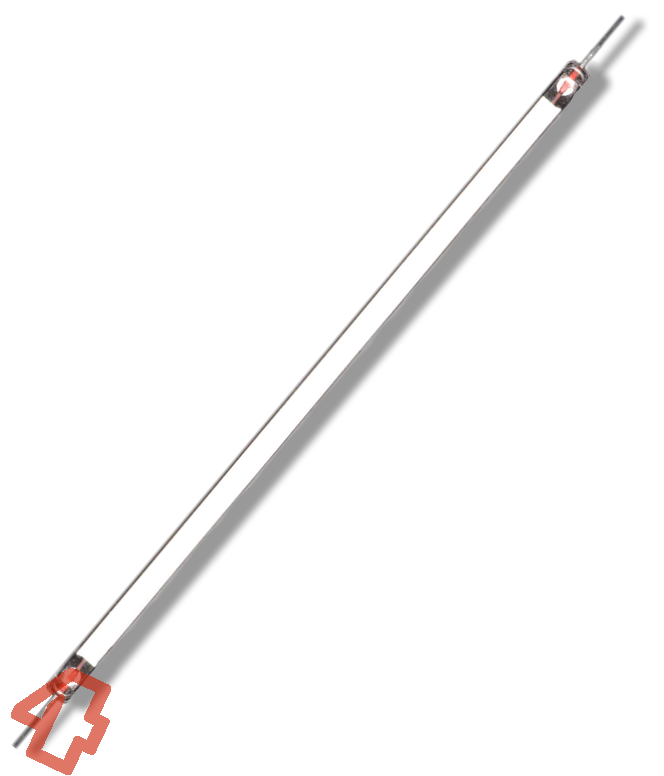

Customer reviews for "CCFL standard 450mm x 2.6mm (L x Ø) white"
