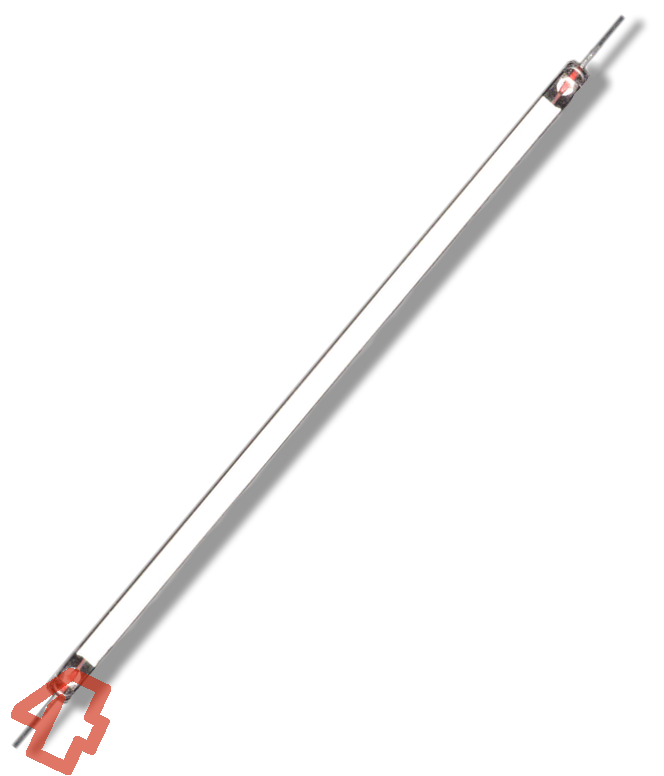

CCFL longlife  325mm x 2.6mm (L x ) white

CCFL longlife 325mm x 2.6mm (L x ) white

Not rated yet


from 5,95 EUR
unit price 8,83 EUR

19 % VAT incl. excl. Shipping costs

1 - 19 pcs. per 8,83 EUR
from 20 pcs. per 5,95 EUR
Product no.: RP-CFL26-0325l-s90
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • electrodes prepared as: tinned wire ends

Main applications

  • these lamps have a purple hue, can not be completely adjusted in TFT panels!
  • white design illumination with a purple hue

Technical data

Massbild einer Kaltkathodenlampe


Mechanical
Tolerance
Diameter 2.6 mm +/- 0,1 mm
Length L 325 mm +/- 1 mm
Luminous length LL > 305 mm +/- 1 mm
Length of electrodes > 10 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis +50°C -
Storing temperature -50 bis +110°C -
Electrical
Working voltage 691 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 3455 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 9000°K +/- 200°K
Visible colour white
-
Luminance 32000 cd/m2 +/- 5%
Lifetime 40000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.
