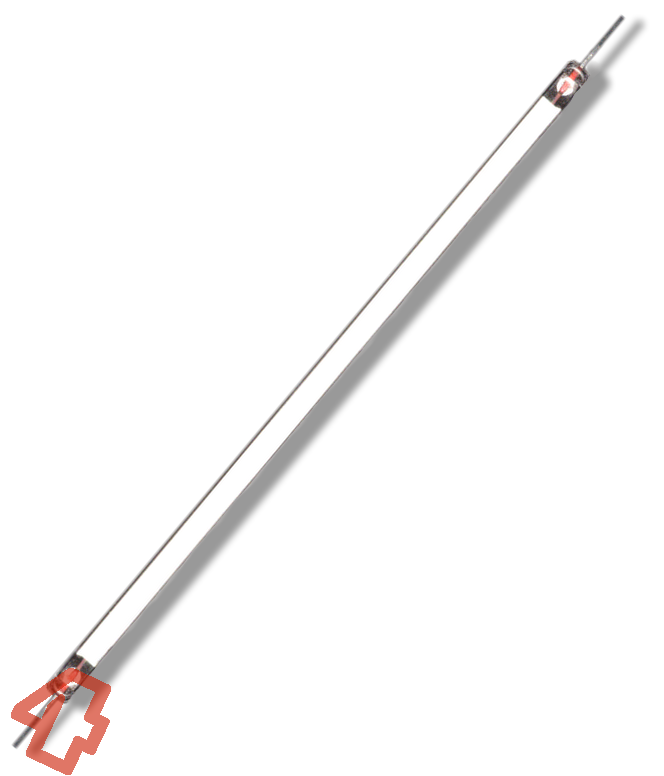

CCFL standard  360mm x 4.1mm (L x ) white

CCFL standard 360mm x 4.1mm (L x ) white

Not rated yet


from 5,95 EUR
unit price 8,83 EUR

19 % VAT incl. excl. Shipping costs

1 - 19 pcs. per 8,83 EUR
from 20 pcs. per 5,95 EUR
Product no.: RP-CFL41-0360s-s42
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • electrodes prepared as: tinned wire ends
  • unused CCFLs of a customer retraction with rests of tin-solder on the electrodes
  • electrodes are shortened to 5mm

Main applications

  • general illumination purpose of all kinds
  • white design illumination with a pinkish hue

Technical data

Massbild einer Kaltkathodenlampe


Mechanical
Tolerance
Diameter 4.1 mm +/- 0.1 mm
Length L 360 mm +/- 1 mm
Luminous length LL > 340 mm +/- 1 mm
Length of electrodes 5 mm + 15 mm
Warm-up time 3 min -
Working temperature 0 bis + 50°C -
Storing temperature - 50 bis + 110°C -
Electrical
Working voltage 445 VRMS +/- 50 VRMS
Working current 5 mARMS + 1 mARMS
Power consumption 2225 mVA +/- 10 %
Sinusoidal AC 20 - 100 KHz -
Optical
Colour temperature 4200°K +/- 200°K
Visible colour weiss
-
Luminance 16000 cd/m2 +/- 5%
Lifetime 20000 h
-


Additional notes

CCFLs are made of glass, which is easily broken. The exchange of CCFL tubes and inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Silicone cables and and silicone caps of the originally built-in CCFL can be re-used if in a good condition. If not re-usable we offer silicone replacement cables and caps and other hard to find parts in the area: CCFL -> Accessories.
