12 Volt Inverter for CCFL 1000mm x 4.1mm (L x ), single

12 Volt Inverter for CCFL 1000mm x 4.1mm (L x ), single

Not rated yet


from 10,31 EUR
unit price 16,18 EUR

19 % VAT incl. excl. Shipping costs

1 - 4 pcs. per 16,18 EUR
5 - 19 pcs. per 12,39 EUR
from 20 pcs. per 10,31 EUR
Product no.: INV012F01sH-1250-B4BXHA
Shipping time: EU 4-14d, non-EU 10-45d

Properties

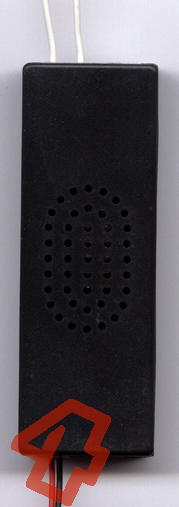

  • inverter incl. a black housing for 12 Volt DC power supply
  • not dimmable
  • DC supply jacket for B2B-XH-A connector
  • red-black cable with min. 200mm length incl. B2B-XH-A connector
  • 1 high voltage/lamp output for B4B-XH-A connector
  • 1 white silicone cables with min. 400mm length incl. B4B-XH-A connector


Main applications

  • supply of CCFLs with a working voltage of around 1250 Volt at about 5mA
  • inexpensive replacement for electronic inverters in all kinds of displays
  • driver circuit for high voltage cascades


Technical data

Mechanichal
Tolerance
Length L 100 mm +/- 0.5 mm
Width W 35 mm +/- 0.5 mm
Heigth H 25 mm +/- 1 mm
Weight without cables
62 g +/- 2 g
Length supply cable > 200 mm -
Length output cable
> 400 mm
-
Working temperature 0 bis + 60°C -
Storage temperature - 20 bis + 80°C -
Housing yes, black
-
Electrical
Supply voltage
12 Volt DC
+/- 1 Volt DC
Supply current
900 mA +/- 50 mA
Working voltage
1250 VRMS +/- 50 VRMS
Working current 5 mARMS +/- 1 mARMS
Power output 6250 mVA +/- 10 %
Sinuslike AC 26 KHz +/- 5 KHz
Fuse in DC supply circuit
no -
Fuse in AC output circuit
no -
Overview technical details



Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.
