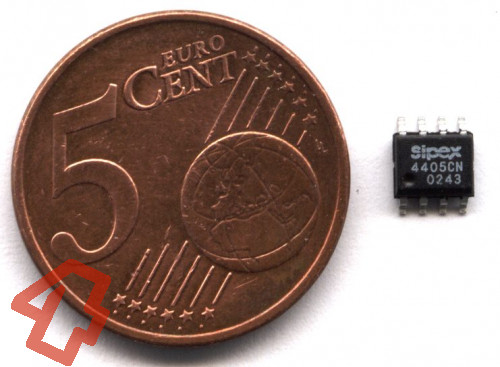

EL-panel driver chip SIPEX SP4405, nsoic 8-pin

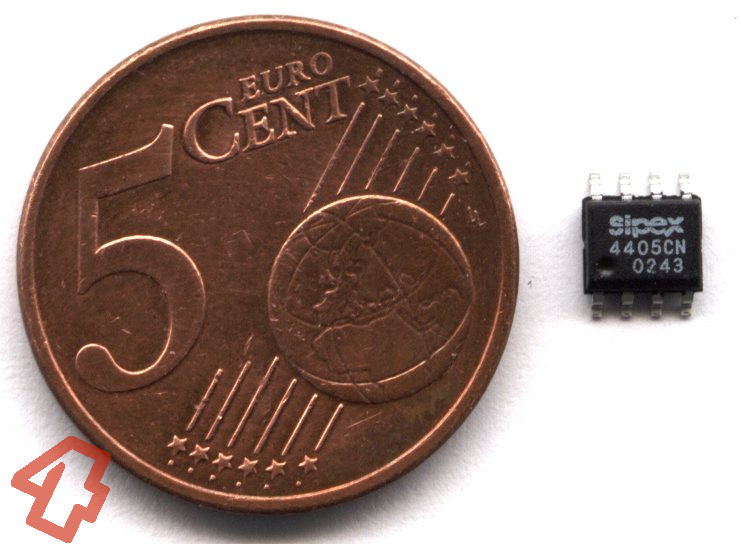

EL-panel driver chip SIPEX SP4405, nsoic 8-pin

Not rated yet


from 2,99 EUR
unit price 3,50 EUR

19 % VAT incl. excl. Shipping costs

1 - 3 pcs. per 3,50 EUR
from 4 pcs. per 2,99 EUR
Product no.: Sipex-SP4405
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • Driver chip for all kinds of EL-panels
  • +2.2V to +4.5V Battery Operation
  • 8-pin nsoic housing
  • Pin 1 for digital ON/OFF-control
  • Output voltage typical 160 Volt AC for the EL-panels
  • 500mW max. power dissipation



Application

  • Very useful for your own designs and EL-applications.
  • Watch the demo-circuit in our picture below.
  • Notice please: we offer just the chip SP4405, not the demo circuit!

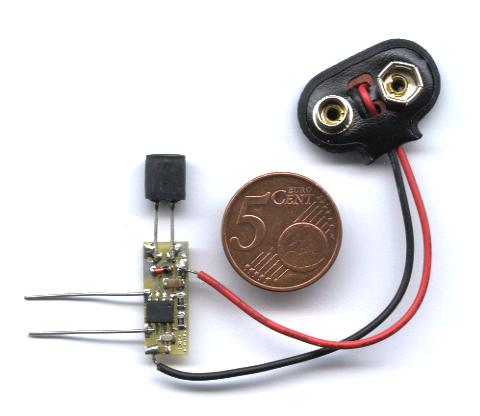

Demo Aufbau SP4405 auf Musterplatine

Notice

  • We offer a small pcb for this chip, which helps you to build up your own circuit.
  • For the optimal coil we suggest to test several types, because the output largely depends on the coils characteristics. We had excellent results with the 262LY-series (471K and above) from TOKO, alternative Newport coils (22R225) 2.2mH, 6.25 Ohm have been very good, too.
  • The complete and detailled datasheet for the SP4405 can be found below this article for download.
