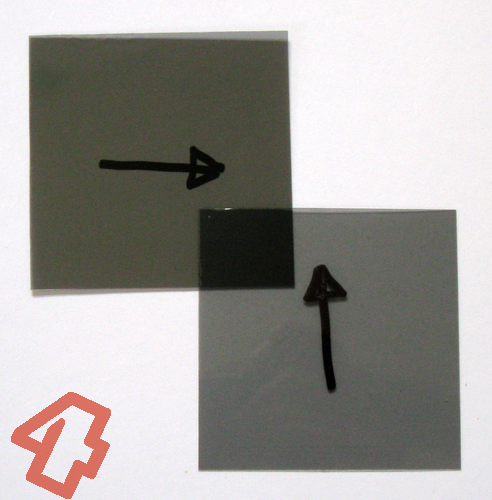

Polarized film, 53mm x 53mm, non-adhesive

Polarized film, 53mm x 53mm, non-adhesive

Not rated yet


from 2,13 EUR
unit price 3,95 EUR

19 % VAT incl. excl. Shipping costs

1 - 4 pcs. per 3,95 EUR
5 - 19 pcs. per 2,62 EUR
from 20 pcs. per 2,13 EUR
Product no.: LED-GB-Zu-Pol-blau
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • Polarized film for the Game Boys LCD
  • Non-adhesive (there are 2 small glue stripes on the backlight itself to hold the polarized film)
  • Overall dimensions: 53mm x 53mm x 0.3mm (incl. the protection layers)
  • Removable protection layers at the front AND rear side, for optimal protection from dust or scratches
  • Arrow at the front side as help for orientation and to mark the front side
  • Polarisation color: blue-violet
  • Weight: ~1g

Application

  • Basically to replace the polarized film which is removed in most cases from the rear side of the LCD along with the reflection layer
  • But togehter with the biversion-pcb and turned for 90° it can be used to double inverter the LCDs signal for a better contrast
  • Of course you may use this part for other applications, LCDs, filters etc.

Additional notes

Before using you MUST remove the protection layers on the front and rear side.

The polarized film will be necessary, only, if you have removed the orginal polarized film from the rear side of the LCD!
And of course if you want to make use of the biversion mod.
In that case the org. polarized film on the rear side of the LCD MUST be removed.
