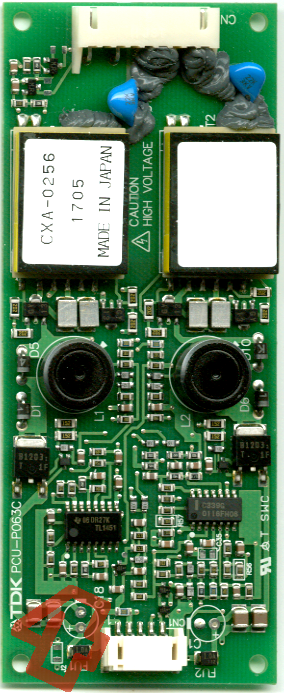

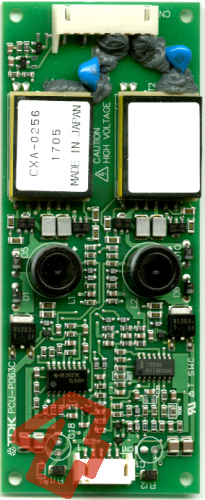

12 Volt Inverter TDK CXA-0256 (PCU-P063C), 4 CCFLs

12 Volt Inverter TDK CXA-0256 (PCU-P063C), 4 CCFLs

Not rated yet


32,73 EUR

19 % VAT incl. excl. Shipping costs

Product no.: TDK CXA-0256
Shipping time: EU 4-14d, non-EU 10-45d

Properties

  • TDK inverter CXA-0256, internal PCU-P063C, without housing for 9.6 up to 14.4 Volt DC power supply


Main applications

  • supply of 4 CCFLs with a working voltage of around 750 Volt at about 6mA


Technical data

Mechanichal
Tolerance
Length L 120 mm +/- 0.5 mm
Width W 50 mm +/- 0.5 mm
Heigth H 8 mm +/- 1 mm
Weight without cables
30 g +/- 2 g
Length supply cable -
-
Length output cable
-
-
Working temperature 0 bis + 50°C -
Storage temperature - 30 bis + 70°C -
Housing no -
Electrical
Supply voltage
9.6 - 14.4 Volt DC
+/- 0.5 Volt DC
Supply current
850 mA +/- 30 mA
Working voltage
750 VRMS +/- 50 VRMS
Working current 6 mARMS +/- 1 mARMS
Power output 10.2 VA +/- 10 %
Sinuslike AC 55 KHz +/- 5 KHz
Fuse in DC supply circuit
yes -
Fuse in AC output circuit
no -
Overview technical details



Additional notes

The installation and exchange of inverters requires certain technical skills. Our safety and handling instructions for inverters and CCFLs keep you up-to-date. We kindly ask you to read this instructions carefully, which can be found in the area: Information. Usually our standard inverters are offered including cables(watch description of the article). If needed we offer silicone replacement cables in other dimensions and caps and other hard to find parts in the area: CCFL -> Accessories.
